• Grab Your Power
  • A Passion For Performance
    Drilling Deeper & Longer
  • Drilling Solutions
    Tailored for the Task
  • Simple Powerful Affordable
    It's Time to Stand Up
  • Drilling Management
    Mapping the Bore on your fingertips

Explore The

Salient Features

Single Point Locating

Single Point Locating

A unique feature to obtain the direction of the downhole transmitter at front locate point while drilling for speed and accuracy.

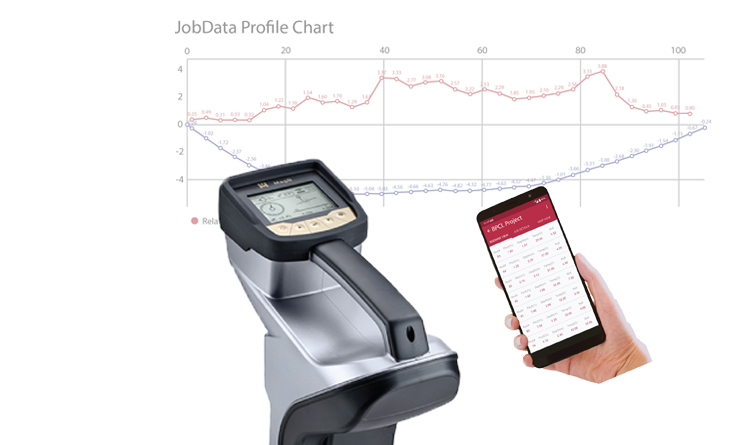

Real Time Bore Mapping

Real Time Bore Mapping

A compact solution to capture the real time bore data while drilling. The app runs on Android phone and data can be logged on the phone and can be shared immediately via mail, whatsapp and other mediums after the completion of the bore.

Screen Prediction Depth

Depth Prediction

This features enables the operator to view the depth to be achieved at a given distance as per the angle of the transmitter, and gets updated automatically with the change in the position and supports him to execute the bore as per the plan.

110m Depth Range Transmitter

110m Depth Range Transmitter

The bold and big Echo-110 transmitter has the depth capability up to 110 meters which makes it unique in the wireless transmitter segment and is most suitable for oil and gas pipeline.

Downhole Power Backup

Downhole Power Backup

120 Hrs of downhole power back up with rechargeable lithium battery for Echo-110 makes it the most powerful wireless transmitter which is ideal for Longer and Deeper Bores in Oil and Gas Pipelines and for Rock drilling.

Downhole Switch Over

Downhole Switch Over

This feature allows to switch over to any transmitter frequency, from normal mode to power mode downhole while drilling. This is required to counter the the varied interference in the drilling path.

Special Series Transmitter

Special Series Transmitter

Special series transmitters have deeper depth capability and sustained Power backup, with rechargeable batteries. It does not have temperature dot as in standard transmitter. It is Ideal for tough jobs which mandate transmitter to go deeper and stay longer downhole.

Multi Frequency

Multi Frequency

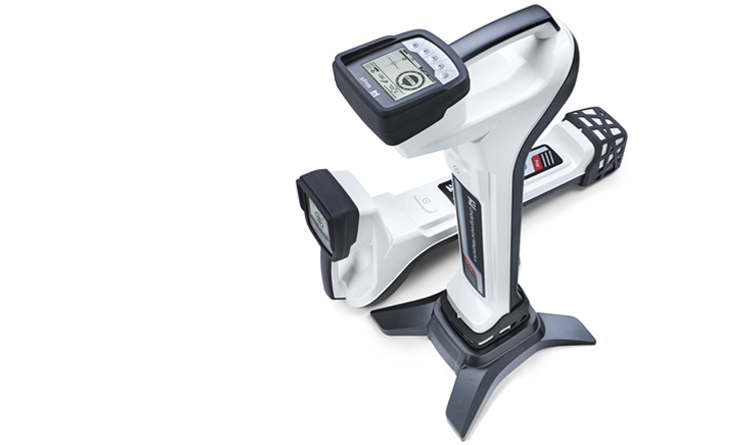

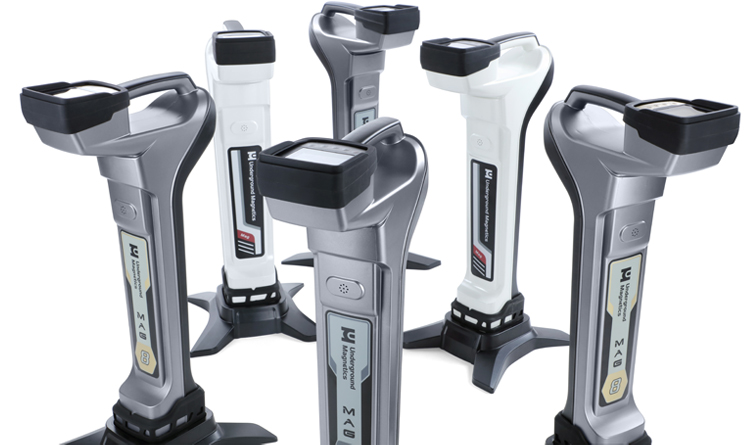

Mag locator and Transmitters have 10 frequencies from 4kHz - 31kHz to counter the active and passive interference with options with flexibility to switch over to any frequency downhole.

Ergonomic Design

Ergonomic Design

The equipment is ergonomically designed to keep the operator stress free while drilling operations.

>
Signal to Noise Ratio

Signal to Noise Ratio

This feature provides warning to the operator while drilling, as the equipment and drill head enter heavy interference zone.

Depth Forecast

Depth Forecast

Provides Depth Estimation for each frequency at a given location on a single click as per the active interference in the designate area. Very useful to plan the bore at the desired depth, eliminating hit and trial error.

Pitch Compensation

Pitch Compensation

This feature allows the operator to pinpoint the location of the centre of the transmitter downhole, irrespective of the angle of the transmitter, thus making locating precise.

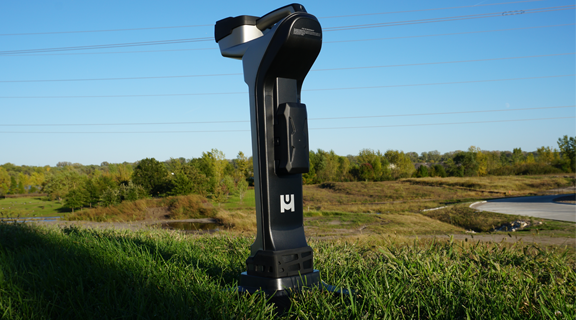

Who We Are

Underground Magnetics Private Limited is a wholly owned Subsidiary of a Foreign Entity, Established in India in September 2016.

This company has been recognized for Technology, Design, Cost Effective Solutions and Qualified Team to Empower its Customers. The Human Resources at Underground Magnetics has humongous exposure to Horizontal Directional Drilling Industry and have supported their customers.
