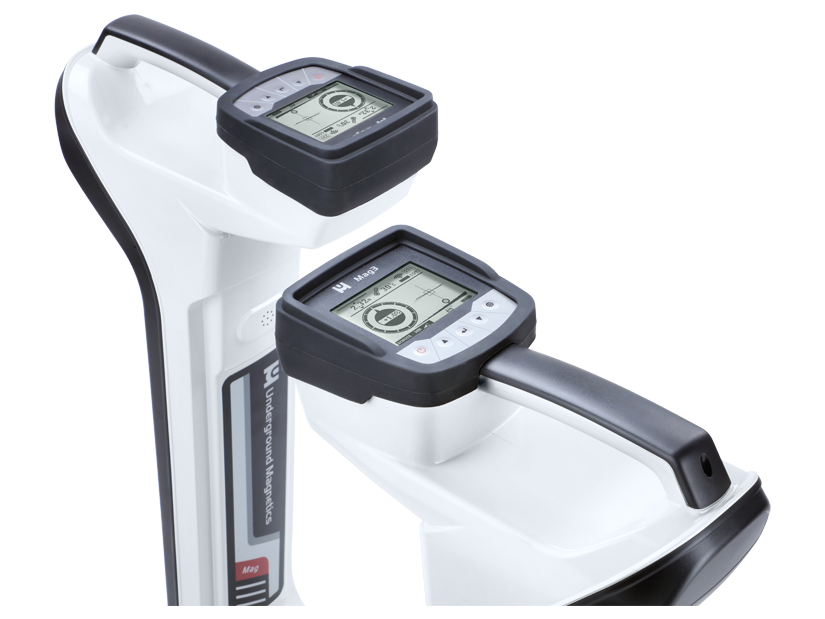

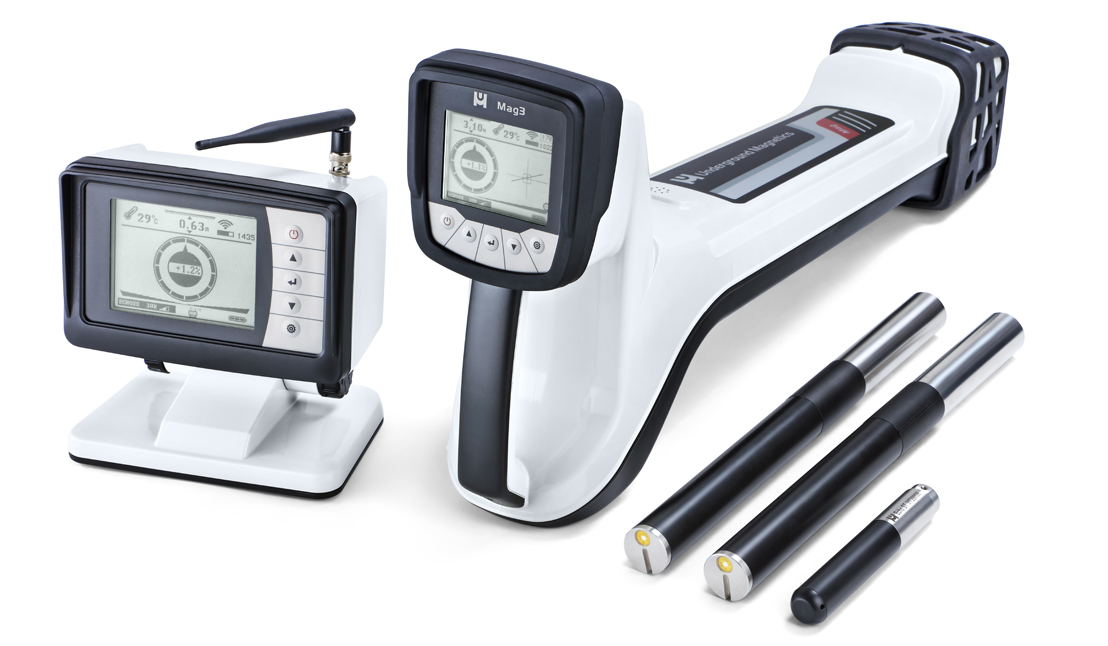

Simple drilling Solutions for the user packed with the Power, Ease of Use and Affordable pricing. Three frequency Transmitter, with depth range of 30 meters and precise data, Mag 3 has been ideal with Mini and Mid size rigs suiting Telecom Industry.
3 frequency locator with 30 meters depth range, 0.1% pitch resolution and 24 clock position, suits mini rigs. It is ideal for maintenance using ST Transmitter

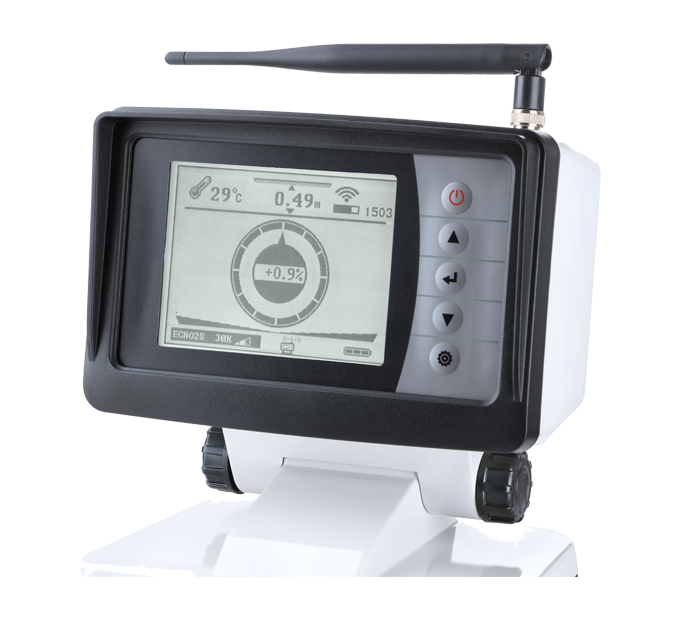

Read SpecificationsAesthetics look, big LCD screen and soft touch buttons for menu functions, and longer battery backup makes it user friendly. Four radio channels with telemetry range up-to 500 meters with standard antenna and 1800 meters using Yagi antenna.
Read Specifications
Compatible Transmitters
| Transmitter | Echo 1 | Echo 1-30 K | Echo ST |
|---|---|---|---|
| Frequency | 3 Frequencies 4/19/30kHz | Single Frequency 30kHz | Single Frequency 30kHz |
| Battery Type | 18650 x 1 Rechargeable Lithium battery 261020 x 1 Lithium Battery (Super cell) |
18650 x 1 Rechargeable Lithium battery 261020 x 1 Lithium Battery (Super cell) |
16340 x 1 Rechargeable Lithium battery |
| Battery Life | 18650 (3.7v) 20 hrs - Normal Mode 261020 (3.7v) 60 hrs - Normal Mode |
18650 (3.7v) 20 hrs - Normal Mode 261020 (3.7v) 60 hrs - Normal Mode |
16340 (3.7v) 10 hrs - Normal Mode |
| Depth Range | 40 m (131 Ft) - Normal Mode | 40 m (131 Ft) - Normal Mode | 25 m (82 Ft) - Normal Mode |
| Temperature | <121° Celsius | <121° Celsius | <88° Celsius |
| Roll | 24 clock Position | 24 clock Position | 24 clock Position |
| Pitch | 0.1% Resolution | 0.1% Resolution | 0.1% Resolution |
| V.BAT | 2.8v ~ 4.2v | 2.8v ~ 4.2v | 3.6v ~ 4.2v |
| Dimensions | 3.2 cm x 38 cm / 1.25 in x 15 in | 3.2 cm x 38 cm / 1.25 in x 15 in | 2 cm x 16 cm / 0.79 in x 6.3 in |
| Water Proof | IP67 | IP67 | IP67 |
* Battery life as per standerd test conditions.
