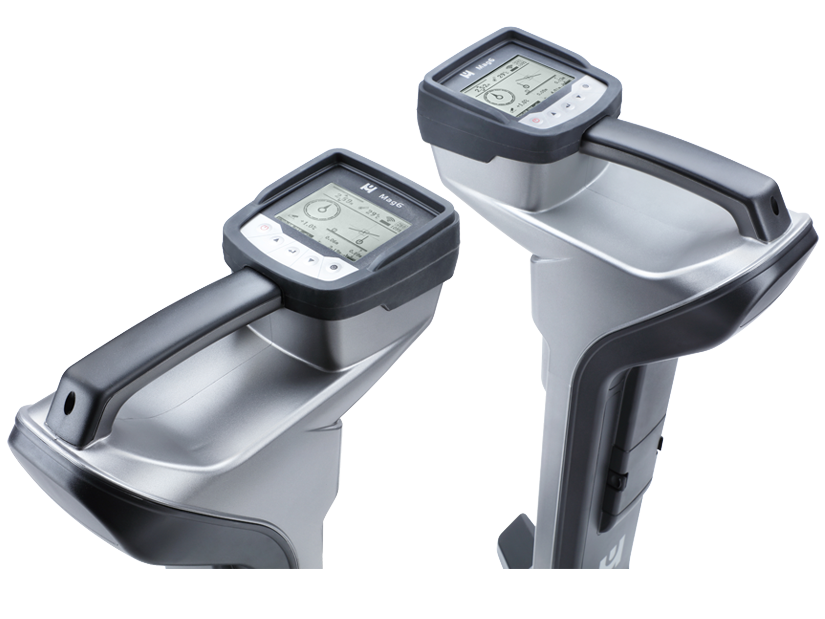

To Tackle the urban challenges, Underground Magnetics developed MAG 6 Locator, which provides a diverse range to cater the need of mini and mid size HDD rigs for support to Telecom, Power and Public Utility Sector. Multiple fixed frequencies supported with power mode helps to pull out critical jobs in urban areas having Active and Passive interfrences. A perfect blend of Power- Aesthetic- Performance, MAG 6 has excited in terms of Productivity and Reliability.
MAG 6 is popular for Mid & Mini size rigs with options of Regular & Special Series Compatible Transmitter upto the Depth range of 70 meters. This equipment is ideal for crossing small canals and busy highways using Bore-to function.

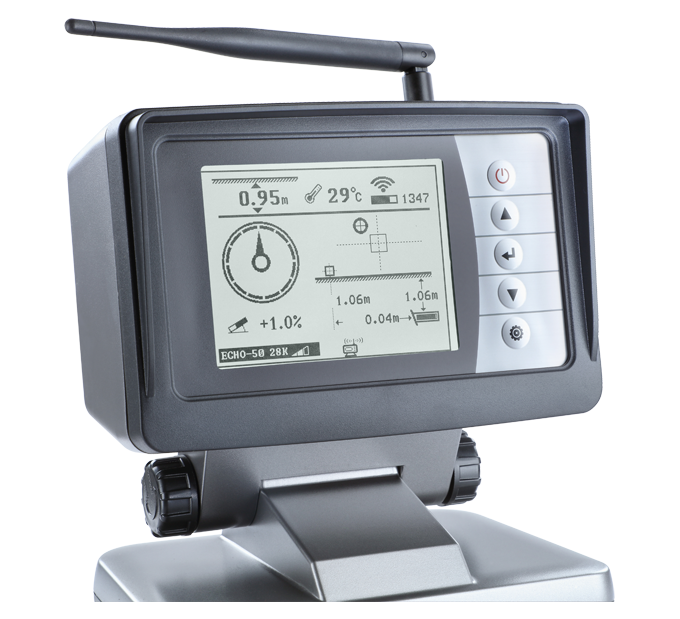

Read SpecificationsAesthetic look , big LCD screen and soft touch buttons for menu functions and longer battery backup makes it user friendly. Four radio channels with telemetry range up-to 500 meters with standard antenna and 1800 meters tele range using Yagi antenna.
Read Specifications
| Transmitter | Echo 70 (Special Series) | Echo 60 | Echo 50 |
|---|---|---|---|
| Frequency | 10 Frequencies 4kHz ~ 31kHz | 10 Frequencies 4kHz ~ 31kHz | 10 Frequencies 4kHz ~ 31kHz |
| Battery Type | 18650 x 3 Rechargeable Lithium Battery | 18650 x 2 Rechargeable Lithium battery 261020 x 2 Lithium Battery (Super cell) |
18650 x 1 Rechargeable Lithium battery 261020 x 1 Lithium Battery (Super cell) |
| Battery Life | 18650 (3.7v) 60 hrs - Normal Mode 15 hrs - High Power Mode |
18650 (3.7v) 50 hrs - Normal Mode 12 hrs - High Power Mode 261020 (3.7v) 160 hrs - Normal Mode 40 hrs - High Power Mode |
18650 (3.7v) 20 hrs - Normal Mode 5 hrs - High Power Mode 261020 (3.7v) 60 hrs - Normal Mode 15 hrs - High Power Mode |
| Depth Range | 50 m (164 Ft) - Normal Mode 70 m (230 Ft) - High Power Mode |
40 m (131 Ft) - Normal Mode 60 m (196 Ft) - High Power Mode |
40 m (131 Ft) - Normal Mode 50 m (164 Ft) - High Power Mode |
| Temperature | <121° Celsius | <121° Celsius | <121° Celsius |
| Roll | 24 clock Position | 24 clock Position | 24 clock Position |
| Pitch | 0.1% Resolution | 0.1% Resolution | 0.1% Resolution |
| V.BAT | 8.4v ~ 12.6v | 5.6v ~ 8.4v | 2.8v ~ 4.2v |
| Dimensions | 3.6 cm x 40.5 cm / 1.42 in x 15.94 in | 3.2 cm x 48 cm / 1.25 in x 19 in | 3.2 cm x 38 cm / 1.25 in x 15 in |
| Water Proof | IP67 | IP67 | IP67 |
| Transmitter | Echo 2S | Echo 1 | Echo X Mini | Echo ST |
|---|---|---|---|---|
| Frequency | 3 Frequencies 4/19/30kHz | 3 Frequencies 4/19/30kHz | Dual Frequencies 19/30kHz | Single Frequency 30kHz |
| Battery Type | 18650 x 1 Rechargeable Lithium battery 261020 x 1 Lithium Battery (Super cell) |
18650 x 1 Rechargeable Lithium battery 261020 x 1 Lithium Battery (Super cell) |
18650 x 1 Rechargeable Lithium battery |
16340 x 1 Rechargeable Lithium battery |
| Battery Life | 18650 (3.7v) 20 hrs - Normal Mode 5 hrs - High Power Mode 261020 (3.7v) 60 hrs - Normal Mode 15 hrs - High Power Mode |
18650 (3.7v) 20 hrs - Normal Mode 261020 (3.7v) 60 hrs - Normal Mode | 18650 (3.7v) 18 hrs - Normal Mode |
16340 (3.7v) 10 hrs - Normal Mode |
| Depth Range | 40 m (131 Ft) - Normal Mode 50 m (164 Ft) - High Power Mode |
40 m (131 Ft) - Normal Mode | 25 m (82 Ft) - Normal Mode | 25 m (82 Ft) - Normal Mode |
| Temperature | <121° Celsius | <121° Celsius | <121° Celsius | <88° Celsius |
| Roll | 24 clock Position | 24 clock Position | 24 clock Position | 24 clock Position |
| Pitch | 0.1% Resolution | 0.1% Resolution | 0.1% Resolution | 0.1% Resolution |
| V.BAT | 2.8v ~ 4.2v | 2.8v ~ 4.2v | 2.8v ~ 4.2v | 3.6v ~ 4.2v |
| Dimensions | 3.2 cm x 38 cm / 1.25 in x 15 in | 3.2 cm x 38 cm / 1.25 in x 15 in | 2.5 cm x 20 cm / 0.98 in x 7.87 in | 2 cm x 16 cm / 0.79 in x 6.3 in |
| Water Proof | IP67 | IP67 | IP67 | IP67 |
* Battery life as per standerd test conditions.
