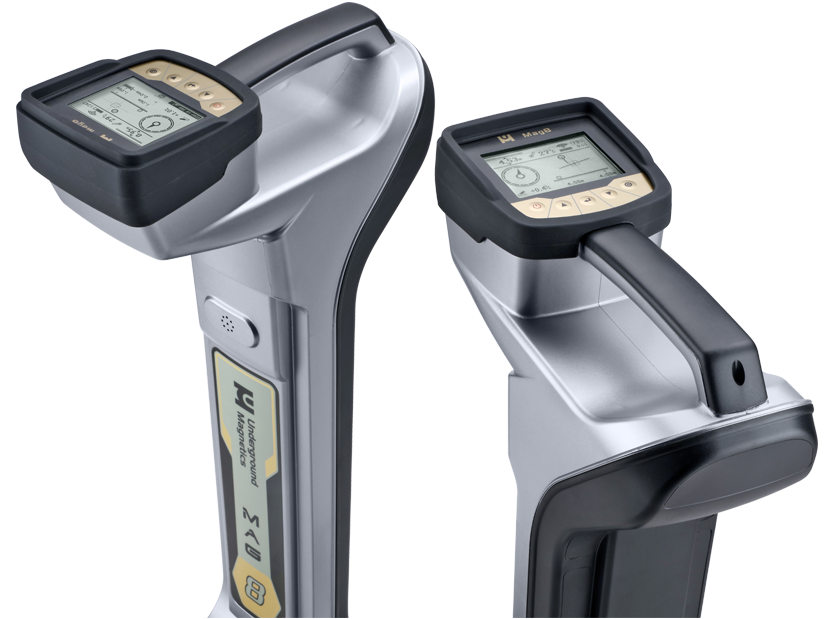

With the State of Art Technology, MAG 8 is one of the most powerful guidance locator for Horizontal Directional Drilling Industry in the wireless segment. Deeper depth capability upto 110 meters, single point locating, on screen prediction depth and downhole power backup upto 120 hrs using rechargeable lithium batteries is unmatched for longer and deeper bores, for pipelines and for rock drilling.

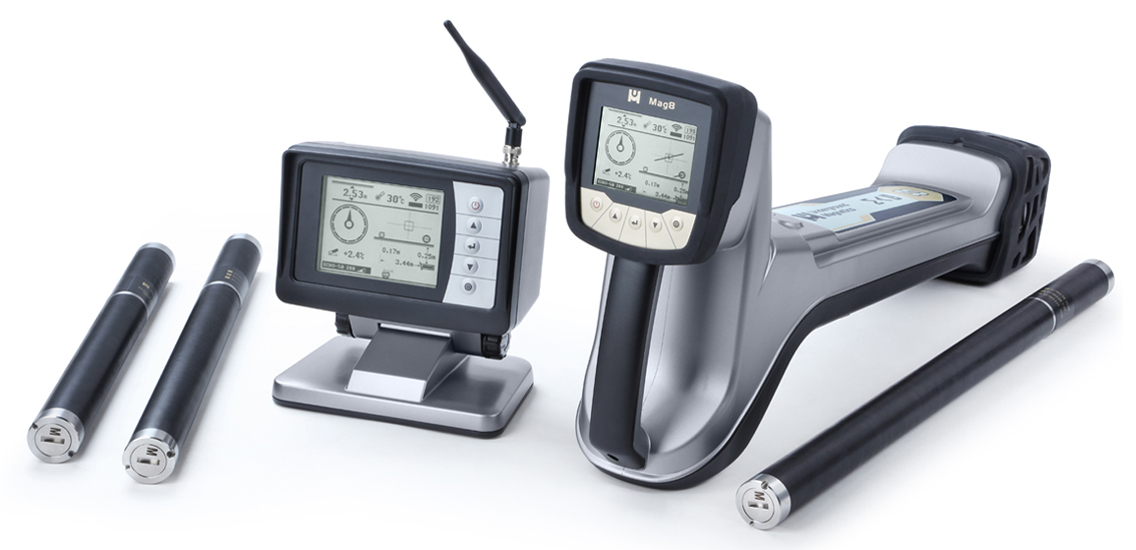

MAG 8 has dual 3D Faraday Shield Antenna with two digital signal processors with advanced communication designs. It has better accuracy and compatible with transmitter having depth range upto 110 meters (under standard test conditions). Keeping transmitter inside the housing, it can undertake housing suitability check by verifying transmitter power and its current drawn.

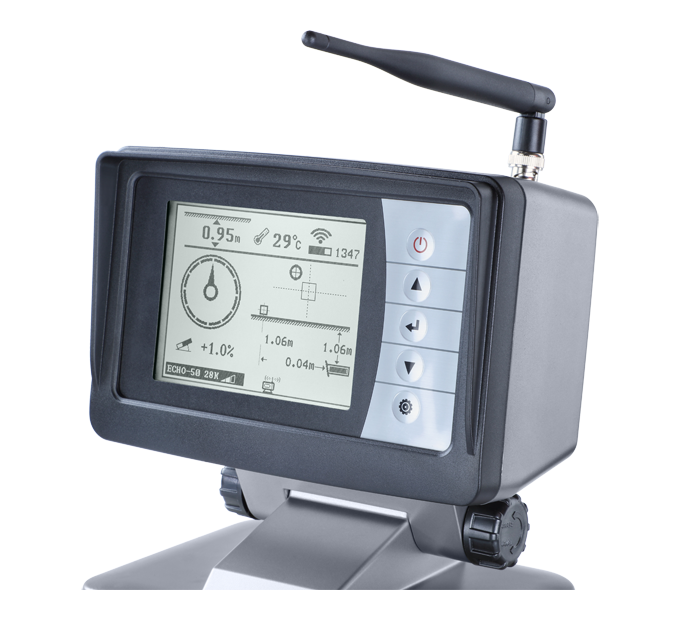

Read SpecificationsAesthetic look, big LCD screen, soft touch buttons for menu functions and longer battery backup makes it user friendly. Four Radio channels with telemetry range up-to 500 meters with standard antenna and 1800 meters using Yagi Antenna. Wireline transmitter compatibility for those who intend to take up wireline drilling.
Read Specifications
| Transmitter | Echo 110 | Echo 90 | Echo 70 |
|---|---|---|---|
| Frequency | 10 Frequencies 4kHz ~ 31kHz | 10 Frequencies 4kHz ~ 31kHz | 10 Frequencies 4kHz ~ 31kHz |
| Battery Type | 18650 B2 x 3 Rechargeable Lithium Battery | 18650 B2 x 2 Rechargeable Lithium Battery | 18650 x 3 Rechargeable Lithium Battery |
| Battery Life | 18650 B2 (3.7v) 120 hrs - Normal Mode 30 hrs - High Power Mode |
18650 B2 (3.7v) 80 hrs - Normal Mode 20 hrs - High Power Mode |
18650 (3.7v) 60 hrs - Normal Mode 15 hrs - High Power Mode |
| Depth Range | 90 m (295 Ft) - Normal Mode 110 m (361 Ft) - High Power Mode |
70 m (230 Ft) - Normal Mode 90 m (295 Ft) - High Power Mode |
50 m (164 Ft) - Normal Mode 70 m (230 Ft) - High Power Mode |
| Temperature | <121° Celsius | <121° Celsius | <121° Celsius |
| Roll | 24 clock Position | 24 clock Position | 24 clock Position |
| Pitch | 0.1% Resolution | 0.1% Resolution | 0.1% Resolution |
| V.BAT | 8.4v ~ 12.6v | 5.6v ~ 8.4v | 8.4v ~ 12.6v |
| Dimensions | 3.6 cm x 60.8 cm / 1.42 in x 24.00 in | 3.6 cm x 45.7 cm / 1.42 in x 18.00 in | 3.6 cm x 40.5 cm / 1.42 in x 15.94 in |
| Water Proof | IP67 | IP67 | IP67 |
| Transmitter | Echo 60 | Echo 50 | Echo 2S |
|---|---|---|---|
| Frequency | 10 Frequencies 4kHz ~ 31kHz | 10 Frequencies 4kHz ~ 31kHz | 3 Frequencies 4/19/30kHz |
| Battery Type | 18650 x 2 Rechargeable Lithium battery 261020 x 2 Lithium Battery (Super cell) |
18650 x 1 Rechargeable Lithium battery 261020 x 1 Lithium Battery (Super cell) |
18650 x 1 Rechargeable Lithium battery 261020 x 1 Lithium Battery (Super cell) |
| Battery Life | 18650 (3.7v) 50 hrs - Normal Mode 12 hrs - High Power Mode 261020 (3.7v) 160 hrs - Normal Mode 40 hrs - High Power Mode |
18650 (3.7v) 20 hrs - Normal Mode 5 hrs - High Power Mode 261020 (3.7v) 60 hrs - Normal Mode 15 hrs - High Power Mode |
18650 (3.7v) 20 hrs - Normal Mode 5 hrs - High Power Mode 261020 (3.7v) 60 hrs - Normal Mode 15 hrs - High Power Mode |
| Depth Range | 40 m (131 Ft) - Normal Mode 60 m (196 Ft) - High Power Mode |
40 m (131 Ft) - Normal Mode 50 m (164 Ft) - High Power Mode |
40 m (131 Ft) - Normal Mode 50 m (164 Ft) - High Power Mode |
| Temperature | <121° Celsius | <121° Celsius | <121° Celsius |
| Roll | 24 clock Position | 24 clock Position | 24 clock Position |
| Pitch | 0.1% Resolution | 0.1% Resolution | 0.1% Resolution |
| V.BAT | 5.6v ~ 8.4v | 2.8v ~ 4.2v | 2.8v ~ 4.2v |
| Dimensions | 3.2 cm x 48 cm / 1.25 in x 19 in | 3.2 cm x 38 cm / 1.25 in x 15 in | 3.2 cm x 38 cm / 1.25 in x 15 in |
| Water Proof | IP67 | IP67 | IP67 |
| Transmitter | Echo 1 | Echo X Mini | Echo ST |
|---|---|---|---|
| Frequency | 3 Frequencies 4/19/30kHz | Dual Frequencies 19/30kHz | Single Frequency 30kHz |
| Battery Type | 18650 x 1 Rechargeable Lithium battery 261020 x 1 Lithium Battery (Super cell) |
18650 x 1 Rechargeable Lithium battery |
16340 x 1 Rechargeable Lithium battery |
| Battery Life | 18650 (3.7v) 20 hrs - Normal Mode 261020 (3.7v) 60 hrs - Normal Mode | 18650 (3.7v) 18 hrs - Normal Mode |
16340 (3.7v) 10 hrs - Normal Mode |
| Depth Range | 40 m (131 Ft) - Normal Mode | 25 m (82 Ft) - Normal Mode | 25 m (82 Ft) - Normal Mode |
| Temperature | <121° Celsius | <121° Celsius | <88° Celsius |
| Roll | 24 clock Position | 24 clock Position | 24 clock Position |
| Pitch | 0.1% Resolution | 0.1% Resolution | 0.1% Resolution |
| V.BAT | 2.8v ~ 4.2v | 2.8v ~ 4.2v | 3.6v ~ 4.2v |
| Dimensions | 3.2 cm x 38 cm / 1.25 in x 15 in | 2.5 cm x 20 cm / 0.98 in x 7.87 in | 2 cm x 16 cm / 0.79 in x 6.3 in |
| Water Proof | IP67 | IP67 | IP67 |
* Battery life as per standerd test conditions.
