Mag X Pro

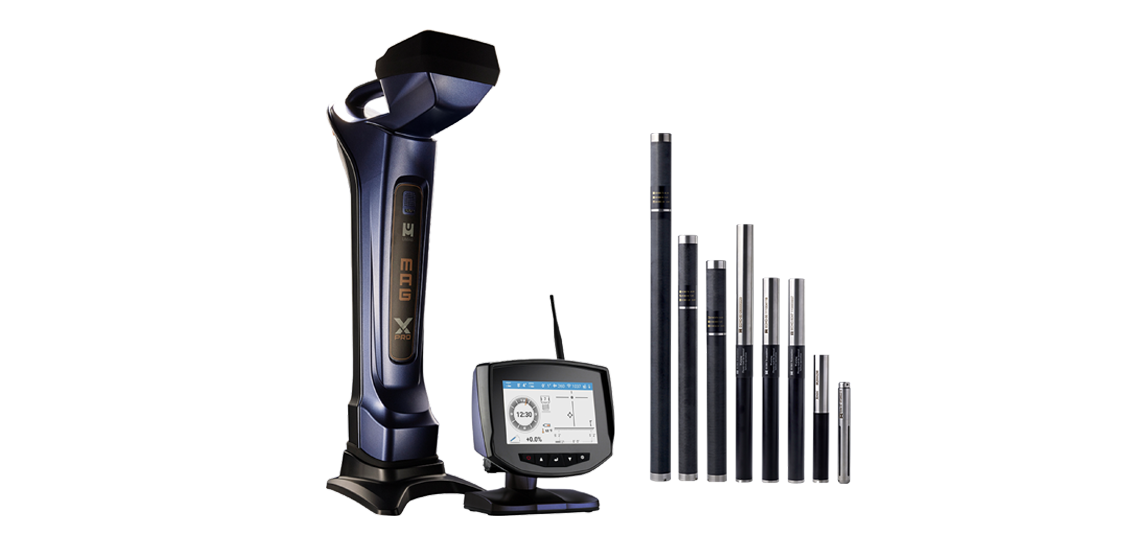

Mag X Pro is latest and advance guidance for Horizontal Directional Drilling industry in wireless segment. It uses unique 19” as well as 15" Tx with combination of Sub-K and high frequencies for drilling under reinforced concrete surfaces and switching downhole while drilling in mix of RCC & regular soil conditions. Deeper depth capability upto 110 meters, on screen prediction depth and downhole power backup upto 120 hrs using rechargeable lithium batteries is unmatched for longer and deeper bores, for pipelines and for rock drilling. It can log the bore on the touch screen display and provide real time logging view.

Locator

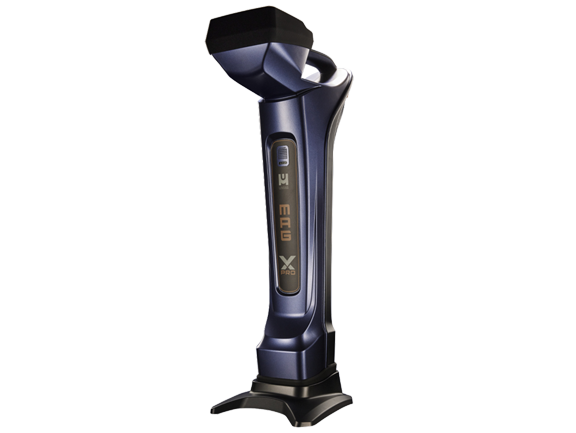

MAG X Pro has New Solid Core 3D Antenna Cluster with Extended Range for the Sub-kHz Frequencies and two digital signal processors with advanced communication designs. With bigger display, it has better accuracy and compatible with transmitter having depth range up to 110 meters (under standard test conditions).

Read Specifications
mag-x-pro-locator
mag-x-pro-display

Display

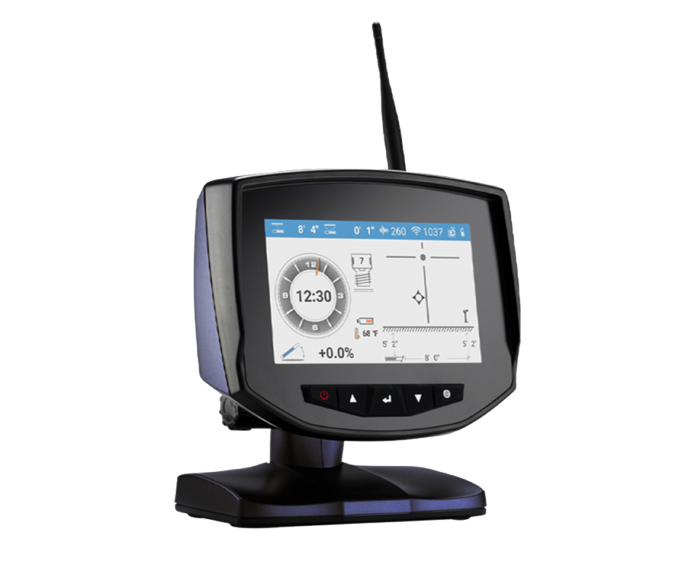

The 7" color LCD monitor is easy-to-read in all conditions and touch-screen technology places the industry's easiest user interface at your fingertips. Built-in data-logging capabilities enable users to automatically monitor and record bore data and profiles — allowing conditions to be measured, documented, analyzed and validated. Four radio channels deliver a telemetry range is up to 500 meters with our standard antenna technology, or up to 1800 meters with an extended range antenna. A rechargeable 12.5V Lithium battery delivers up to 50 hours of use before a recharge is needed.

Read Specifications

Special Series Transmitters

Transmitter Echo 110 Echo 90 Echo 70
Frequency 12 Frequencies 4kHz ~ 41 kHz 12 Frequencies 4kHz ~ 41 kHz 12 Frequencies 4kHz ~ 41 kHz
Battery Type 18650 B2 x 3 Rechargeable Lithium Battery 18650 B2 x 2 Rechargeable Lithium Battery 18650 x 3 Rechargeable Lithium Battery
Battery Life 18650 B2 (3.7v)
120 hrs - Normal Mode
30 hrs - High Power Mode		 18650 B2 (3.7v)
80 hrs - Normal Mode
20 hrs - High Power Mode		 18650 (3.7v)
60 hrs - Normal Mode
15 hrs - High Power Mode
Depth Range 90 m (295 Ft) - Normal Mode
110 m (361 Ft) - High Power Mode		 70 m (230 Ft) - Normal Mode
90 m (295 Ft) - High Power Mode		 50 m (164 Ft) - Normal Mode
70 m (230 Ft) - High Power Mode
Temperature <121° Celsius <121° Celsius <121° Celsius
Roll 24 clock Position 24 clock Position 24 clock Position
Pitch 0.1% Resolution 0.1% Resolution 0.1% Resolution
V.BAT 8.4v ~ 12.6v 5.6v ~ 8.4v 8.4v ~ 12.6v
Dimensions 3.6 cm x 60.8 cm / 1.42 in x 24.00 in 3.6 cm x 45.7 cm / 1.42 in x 18.00 in 3.6 cm x 40.5 cm / 1.42 in x 15.94 in
Water Proof IP67 IP67 IP67

Regular Series Transmitters

Transmitter Echo 60 Echo 50X / XF Echo 50
Frequency 12 Frequencies 4kHz ~ 41 kHz 16 Frequencies 0.3 kHz ~ 41 kHz 12 Frequencies 4kHz ~ 41 kHz
Battery Type 21700 x 2
Rechargeable Lithium battery

261020 x 2
Lithium Battery (Super cell)		 21700 x 1
Rechargeable Lithium battery

261020 x 1
Lithium Battery (Super cell)		 21700 x 1
Rechargeable Lithium battery

261020 x 1
Lithium Battery (Super cell)
Battery Life 21700 (3.7V)
70hrs – Normal Mode
25hrs – High Power Mode

261020 (3.7v)
160 hrs - Normal Mode
40 hrs - High Power Mode		 21700 (3.7V))
30hrs – Normal Mode
15hrs – High Power Mode

261020 (3.7v)
60 hrs - Normal Mode
15 hrs - High Power Mode		 21700 (3.7V))
30hrs – Normal Mode
15hrs – High Power Mode

261020 (3.7v)
60 hrs - Normal Mode
15 hrs - High Power Mode
Depth Range 40 m (131 Ft) - Normal Mode
60 m (196 Ft) - High Power Mode		 40 m (131 Ft) - Normal Mode
50 m (164 Ft) - High Power Mode		 40 m (131 Ft) - Normal Mode
50 m (164 Ft) - High Power Mode
Temperature <121° Celsius <121° Celsius <121° Celsius
Roll 24 clock Position 24 clock Position 24 clock Position
Pitch 0.1% Resolution 0.1% Resolution 0.1% Resolution
V.BAT 5.6v ~ 8.4v 2.8v ~ 4.2v 2.8v ~ 4.2v
Dimensions 3.2 cm x 48 cm / 1.25 in x 19 in 3.2 cm x 38 cm / 1.25 in x 15 in 3.2 cm x 38 cm / 1.25 in x 15 in
Water Proof IP67 IP67 IP67
Transmitter Echo X Mini Echo ST
Frequency Dual Frequencies 19/30kHz Single Frequency 30kHz
Battery Type 18650 x 1
Rechargeable Lithium battery

 16340 x 1
Rechargeable Lithium battery
Battery Life 18650 (3.7v)
18 hrs - Normal Mode

 16340 (3.7v)
10 hrs - Normal Mode
Depth Range 25 m (82 Ft) - Normal Mode 25 m (82 Ft) - Normal Mode
Temperature <121° Celsius <88° Celsius
Roll 24 clock Position 24 clock Position
Pitch 0.1% Resolution 0.1% Resolution
V.BAT 2.8v ~ 4.2v 3.6v ~ 4.2v
Dimensions 2.5 cm x 20 cm / 0.98 in x 7.87 in 2 cm x 16 cm / 0.79 in x 6.3 in
Water Proof IP67 IP67

* Battery life as per standerd test conditions.

** All data as per under standard test conditions
